H-RAIL OVERHEAD
头顶式轨道系统
高空作业需要可靠的锚定装置，但传统的解决方案通常不美观或具有限制工作区域的缺点。H-RAIL 轨道系统是一种灵活且安全的解决方案，其特点是视觉影响最小。由于其结构设计，H-RAIL 需要很少的固定点，就可以让用户在不同的配置中搭建刚性锚固线。H-RAIL 是高空作业的理想选择，无论是区域限制，还是悬挂作业。
描述
使用 H-RAIL OVERHEAD 高处作业
H-RAIL 系统经过专门设计，可与配备四个轮子的特殊滑动装置配合使用，非常适合在高空防坠落和悬挂作业。

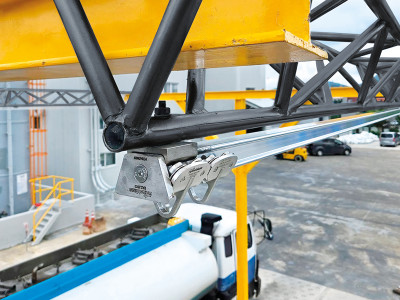

H-RAIL 的多功能性使其能够安装在不同类型的结构上（钢、木材或混凝土），满足每种安装需求。与其他可用型号不同，H-RAIL OVERHEAD 安装在承重结构下方，而 H-RAIL ON WALL 安装在墙壁上，H-RAIL ON FLOOR 安装在屋顶上。
H-RAIL 安装过程中立柱之间的间距高达 6 米，仅需要几个固定点，就能完成安装。
什么是高处作业?
高处作业是指 2 米以上有坠落风险的任何类型的施工操作，每一步都需要保证操作员的人身安全，防止坠落。通常，为了进行建筑外墙维护等工作，尤其是在大型建筑物上，会采用悬挂吊篮（BMU）等笨重的解决方案。然而，这些方案需要满足大空间和一定的安装需求，必须从建筑设计阶段就要考虑到这一点。H-RAIL 因其简易和轻便性而提供了一种具有卓越性能的替代解决方案。
Rothoblaas 的 H-RAIL OVERHEAD 是安全高空作业以及屋顶和外墙维护的优质产品。作为一种可靠实用的创新解决方案，这种锚固系统适用于任何类型结构，可以为操作员提供最大程度的保护。其安装极其简单，不需要复杂的砌筑工作，保证了卓越的装配效率。符合人体工程学的紧凑设计与周围的建筑和谐地融为一体，保护了当地建筑的美感。
H-RAIL 采用极高品质的耐用材料制成，可为施工操作员和用户提供持久保护，安心又安全。凭借其多功能性和可靠性，该产品成为工业维护和住宅建筑干预等广泛场景应用的理想选择，有助于提高安全标准并保护高空作业人员的生命安全。
文件
-
技术数据表
-
符合性声明（DOC）
-
安全规程、安装和使用说明
-
File BIM.ifc
-
File BIM.rfa
-
符合性声明（DOC）
-
安装手册
RAIL
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAIL3000 | 3m aluminium rail | EN AW 6063 (T6) | 49 | 41 | 3000 | 1 |
| RAILC90 | 90° curved rail | EN AW 6063 (T6) | 475 | 41 | 475 | 1 |
| RAILC120 | 120° curved rail | EN AW 6063 (T6) | 336 | 41 | 538 | 1 |
| RAILC135 | 135° curved rail | EN AW 6063 (T6) | 257 | 41 | 536 | 1 |
| RAILC150 | 150° curved rail | EN AW 6063 (T6) | 178 | 41 | 512 | 1 |
SUPPORT
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAILBRAT | rail bracket | AISI 304 stainless steel grade 1.4301 | 60 | 74 | 60 | 1 |
| RAILBRATA4 | rail bracket | AISI 316 stainless steel grade 1.4401 | 60 | 74 | 60 | 1 |
| RAILBRAT90 | rail bracket | AISI 304 stainless steel grade 1.4301 | 60 | 74 | 60 | 1 |
| RAILBRAT90A4 | rail bracket | AISI 316 stainless steel grade 1.4401 | 60 | 74 | 60 | 1 |
| RAILBRAT12 | rail bracket | AISI 304 stainless steel grade 1.4301 | 60 | 63 | 60 | 1 |
| RAILBRAT12A4 | rail bracket | - | 60 | 63 | 60 | 1 |
| RAILBRAT16 | rail bracket | AISI 304 stainless steel grade 1.4301 | 60 | 63 | 60 | 1 |
| RAILBRAT16A4 | rail bracket | AISI 316 stainless steel grade 1.4401 | 60 | 63 | 60 | 1 |
| RAILBRATW | rail bracket | AISI 304 stainless steel grade 1.4301 | 103 | 63 | 60 | 1 |
| RAILBRATWA4 | rail bracket | AISI 316 stainless steel grade 1.4401 | 103 | 63 | 60 | 1 |
| RAILBRAS | rail bracket | AISI 304 stainless steel grade 1.4301 | 60 | 22 | 60 | 1 |
| RAILBRASA4 | rail bracket | AISI 316 stainless steel grade 1.4401 | 60 | 22 | 60 | 1 |
| RAILBRAW | rail bracket | AISI 304 stainless steel grade 1.4301 | 120 | 22 | 60 | 1 |
| RAILBRAWA4 | rail bracket | AISI 316 stainless steel grade 1.4401 | 120 | 22 | 60 | 1 |
TERMINAL ELEMENT
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAILEND | rail terminal element | AISI 304 stainless steel grade 1.4301 | 84.5 | 48.6 | 55 | 1 |
| RAILENDA4 | rail terminal element | AISI 316 stainless steel grade 1.4401 | - | 48.6 | 55 | 1 |
| RAILENDOPEN | rail terminal element | AISI 304 stainless steel grade 1.4301 | 49 | 49 | 60 | 1 |
| RAILENDOPENA4 | rail terminal element | AISI 316 stainless steel grade 1.4401 | - | 49 | 60 | 1 |
JOINT
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAILJUN | rail junction element | EN AW 6082 | 28.7 | 32.7 | 340 | 1 |
SLIDING DEVICE
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAILSLIDE | sliding device | AISI 304 stainless steel grade 1.4301 | 50 | 51 | 70 | 1 |
| RAILSLIDEA4 | sliding device | AISI 316 stainless steel grade 1.4401 | 50 | 51 | 70 | 1 |
| RAILSLIDEOH | sliding device | AISI 304 stainless steel grade 1.4301 | 72 | 72 | 95 | 1 |
| RAILSLIDEOHA4 | sliding device | AISI 316 stainless steel grade 1.4401 | 72 | 72 | 95 | 1 |
TOOL
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAILJUNTOOL | rail tool | EN AW 6082 - 1.1191 (C45E) aluminium | 92 | 116 | 132 | 1 |
| RAILPLATE | rail id plate | - | - | 40 | 140 | 1 |
FASTENING
| CODE | description | material | pcs. |
|---|---|---|---|
| RAILOCKSCREW | lock screw | A2-70 | 250 |
| RAILSCREW | DIN 7991 A2-70 | A2-70 | 50 |
| RAILSCREWA4 | DIN 7991 A4-70 | A4-70 | 50 |
TARGAHORxy
| CODE | description | pcs. |
|---|---|---|
| TARGAHORIT | Label plate for PATROL and H-RAIL systems IT | 1 |
| TARGAHORDE | Label plate for PATROL and H-RAIL systems DE | 1 |
| TARGAHOREN | Label plate for PATROL and H-RAIL systems EN | 1 |
| TARGAHORES | Label plate for PATROL and H-RAIL systems ES | 1 |
| TARGAHORFR | Label plate for PATROL and H-RAIL systems FR | 1 |
| TARGAHORPT | Label plate for PATROL and H-RAIL systems PT | 1 |
| TARGAHORRU | Label plate for PATROL and H-RAIL systems RU | 1 |
| TARGAHORCS | Label plate for PATROL and H-RAIL systems CS | 1 |
| TARGAHORDA | Label plate for PATROL and H-RAIL systems DA | 1 |
| TARGAHOREL | Label plate for PATROL and H-RAIL systems EL | 1 |
| TARGAHORET | Label plate for PATROL and H-RAIL systems ET | 1 |
| TARGAHORFI | Label plate for PATROL and H-RAIL systems FI | 1 |
| TARGAHORHR | Label plate for PATROL and H-RAIL systems HR | 1 |
| TARGAHORHU | Label plate for PATROL and H-RAIL systems HU | 1 |
| TARGAHORIS | Label plate for PATROL and H-RAIL systems IS | 1 |
| TARGAHORJA | Label plate for PATROL and H-RAIL systems JA | 1 |
| TARGAHORLT | Label plate for PATROL and H-RAIL systems LT | 1 |
| TARGAHORLV | Label plate for PATROL and H-RAIL systems LV | 1 |
| TARGAHORNL | Label plate for PATROL and H-RAIL systems NL | 1 |
| TARGAHORNO | Label plate for PATROL and H-RAIL systems NO | 1 |
| TARGAHORPL | Label plate for PATROL and H-RAIL systems PL | 1 |
| TARGAHORRO | Label plate for PATROL and H-RAIL systems RO | 1 |
| TARGAHORSK | Label plate for PATROL and H-RAIL systems SK | 1 |
| TARGAHORSL | Label plate for PATROL and H-RAIL systems SL | 1 |
| TARGAHORSV | Label plate for PATROL and H-RAIL systems SV | 1 |
| TARGAHORTR | Label plate for PATROL and H-RAIL systems TR | 1 |
| TARGAHORZH | Label plate for PATROL and H-RAIL systems ZH | 1 |
| TARGAHORAR | Label plate for PATROL and H-RAIL systems AR | 1 |
